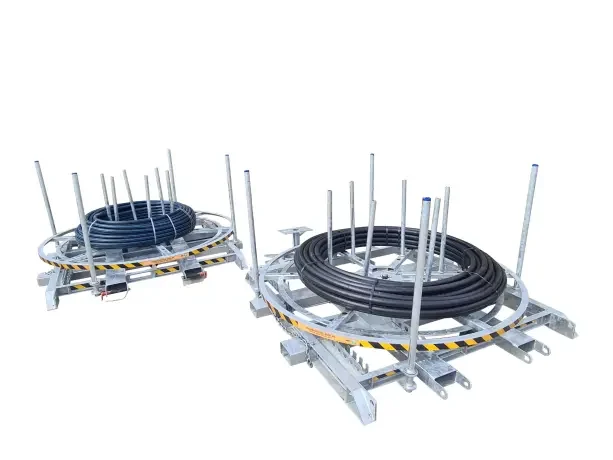

Decoiling Skids

Complete Piping offers robust and reliable Decoiling Skid Units engineered for efficient handling and deployment of coil pipe in demanding construction and industrial environments. These heavy-duty units are designed for rugged field operations, ensuring safe and smooth pipe decoiling with minimal manual effort. Built from durable, high-quality materials, our Skid Mounted Pipe Decoilers are suitable for a wide range of polyethylene (PE) pipe applications.

Key Features:

Pipe Capacity: Configured to accommodate PE pipes ranging from 25mm to 75mm in diameter
Heavy-Duty Design: Engineered for tough site conditions and long service life
Horizontal Turntable: Allows easy pipe loading and controlled unwinding during operation
Rotation Friction Brake: Provides precise control to prevent over-spooling and ensure safe handling
Load Capacity: Rated for up to 500kg Safe Working Load (SWL)

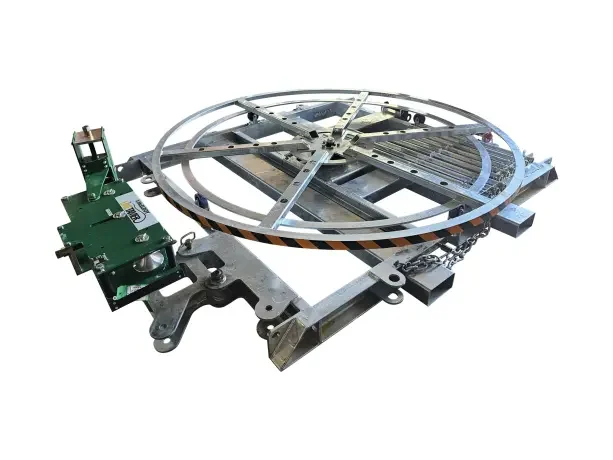

Compatibility: Can be used with a McElroy 2″ LineTamer when ordered with an optional swing arm
Warranty: Supplied with a 1-year full warranty, with extensions available upon request
Local Support: All spare parts are locally stocked for quick service and maintenance turnaround

Applications:
Decoiling Skids are commonly used in pipeline installation, civil engineering projects, utility works, and industrial pipe deployment tasks where coiled PE pipes are required. These units ensure efficient site setup, reduce manual handling risks, and enhance overall productivity during pipe installation operations.

Operational Benefits:

Streamlined pipe preparation and deployment
Portable, skid-mounted design for easy transport and positioning
Designed for safe and efficient operation by a single crew
Reduces downtime and improves on-site workflow efficiency

Complete Piping Systems’ Decoiling Skids combine mechanical strength, operational safety, and practical design features to deliver dependable performance across diverse field conditions.

Decoiling Skids Products List

S.No	Product Name	Model Variations	Accessories & Replacement Parts	Specifications

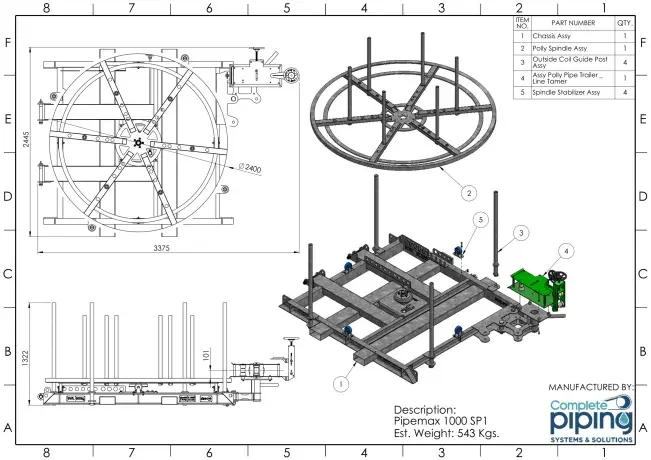

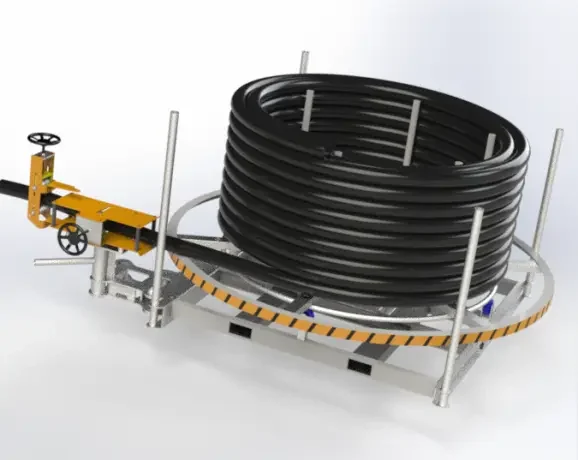

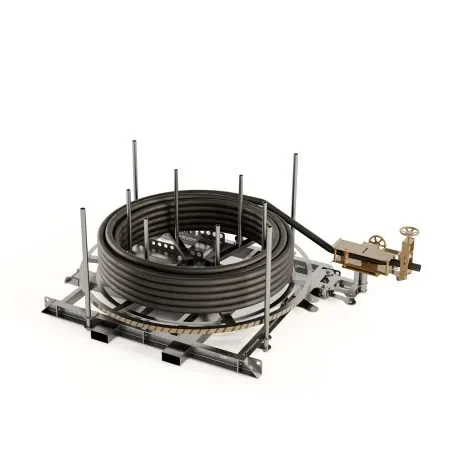

1	PipeMAX 1000 2 Inch Skid Mount PE Pipe Decoiler	PT1010 pipeMAX 2 Inch Skid Mount PE Pipe Decoiler PT1011 pipeMAX 2 Inch Skid Mount PE Pipe Decoiler Combination withMcElroy Line Tamer, StowableSwing Arm	PT1012 McElroy Swing Arm Mount Assembly (Mount arm only) PT1013 Centre Pin Pipe coil support posts PT1014 External post pipe supports	Heavy Duty Rugged Construction Suitable for all site applications Industrial Galvanized Finish For durability 500kg SWL Capacity exceed the weight of most standard PE pipe coils Rotator Fiction Brake Help avoid pipe ‘spring - back’ when decoiling Adjustable centre and external pin to accommodate variation in coil dimensions Overall dimension 2400x2400x545mm (LxWxH) – with pins removed. 355kg total weight Available as a standard rotator or a combination of rotator and McElroy Linetamer combination Suitable for up to 75mm OD Pipe Diameters
2	PipeMAX 3000 6 inch Skid - mount PE Pipe Decoiler	PT3023 pipeMAX6InchPE Pipe Decoiling Cage & SkidFrame, 650kg SWL	PT3025 Main Internal Roller Replacement PT3026 Exit Roller Replacement-Horizontal PT3027 Exit Roller Replacement-Vertical PT3028 Door Replacement Latches PT3029 Door & Side Panels (please specifyrequirements)	Heavy Duty Rugged Construction Suitable for all site application Industrial Galvanized Finish For durability 650kg SWL, optional up to 1800kg SWL Capacity exceed the weight of most standard PE pipe coils Forklift Tyne Pockets & Chainable Adjustable Exit Roller System Accessories Toolbox Supplied as Standard Available as standard rotator Suitable for up to 180mm OD Pipe Diameters
3	2 inch McElroy Line Tamer - PE Pipe Straightener	MLT2000 2 Inch McElroy Line Tamer–PE Pipe Straightener	We stock a wide range of replacement parts–please contact our sales office to discuss your requirements	Suitable for up to 63mm OD Pipe Diameters
4	6 inch McElroy Line Tamer - PE Pipe Straightener	MLT3000 6 Inch McElroy Line Tamer–PE Pipe Straightener(without HPU)	We stock a wide range of replacement parts–please contact our sales office to discuss yourrequirements Hydraulic Power Packs (HPU) Are available also in Diesel, Petrol, 12v battery, 12v or 24v & 240v	Suitable for up to 160mm OD Pipe Diameters

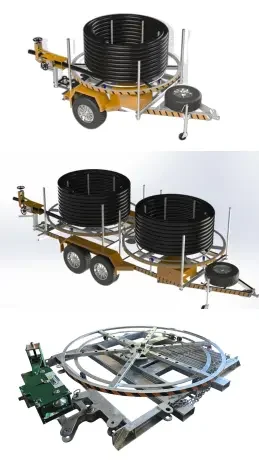

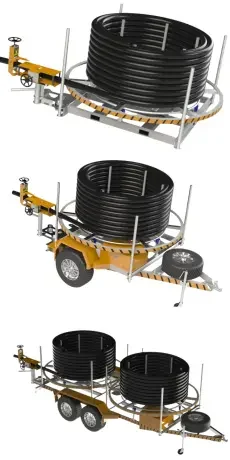

5	MEGA coil Customised 4 Coils	PT10023 2 Inch Decoiling Trailer Only PT10024 2 Inch Decoiling Trailer C/W McElroy Line Tamer, Stowable Swing Arm	PT10025 McElroy Swing Arm Mount Assembly PT10026 Centre Pin Pipe coil support posts PT10027 External post pipe supports PT10028 Mudguard replacement-left/right PT10029 Electrical Harness & Lighting Kit	Heavy Duty Rugged Construction Suitable for all site application Industrial Galvanized Finish For durability 500kg SWL, 2000kg ATM Capacity exceed the weight of most standard PE pipe coils Rotator Fiction Brake Help avoid pipe ‘spring - back’ when decoiling Spare Wheel & Accessories Toolbox Supplied as Standard Available as standard rotator Suitable for up to 75mm OD Pipe Diameters
6	MEGA coil Customised Transport 4 Coils	PT10023 2 Inch Decoiling Trailer Only PT10024 2 Inch Decoiling Trailer C/W McElroy Line Tamer, Stowable Swing Arm	PT10025 McElroy Swing Arm Mount Assembly PT10026 Centre Pin Pipe coil support posts PT10027 External post pipe supports PT10028 Mudguard replacement-left/right PT10029 Electrical Harness & Lighting Kit	Heavy Duty Rugged Construction Suitable for all site application Industrial Galvanized Finish For durability 500kg SWL, 2000kg ATM Capacity exceed the weight of most standard PE pipe coils Rotator Fiction Brake Help avoid pipe ‘spring - back’ when decoiling Spare Wheel & Accessories Toolbox Supplied as Standard Available as standard rotator Suitable for up to 75mm OD Pipe Diameters
7	MEGA coil PE Pipe Drum & Base Frame	PT10023 2 Inch Decoiling Trailer Only PT10024 2 Inch Decoiling Trailer C/W McElroy Line Tamer, Stowable Swing Arm	PT10025 McElroy Swing Arm Mount Assembly PT10026 Centre Pin Pipe coil support posts PT10027 External post pipe supports PT10028 Mudguard replacement-left/right PT10029 Electrical Harness & Lighting Kit	Heavy Duty Rugged Construction Suitable for all site application Industrial Galvanized Finish For durability 500kg SWL, 2000kg ATM Capacity exceed the weight of most standard PE pipe coils Rotator Fiction Brake Help avoid pipe ‘spring - back’ when decoiling Spare Wheel & Accessories Toolbox Supplied as Standard Available as standard rotator Suitable for up to 75mm OD Pipe Diameters
8	MEGA coil PE Pipe Drum Only	PT10023 2 Inch Decoiling Trailer Only PT10024 2 Inch Decoiling Trailer C/W McElroy Line Tamer, Stowable Swing Arm	PT10025 McElroy Swing Arm Mount Assembly PT10026 Centre Pin Pipe coil support posts PT10027 External post pipe supports PT10028 Mudguard replacement-left/right PT10029 Electrical Harness & Lighting Kit	Heavy Duty Rugged Construction Suitable for all site applications Industrial Galvanized Finish For durability 500kg SWL, 2000kg ATM The capacity exceeds the weight of most standard PE pipe coils Rotator Fiction Brake Help avoid pipe ‘spring - back’ when decoiling Spare Wheel & Accessories Toolbox Supplied as Standard Available as a standard rotator Suitable for up to 75mm OD Pipe Diameters
9	MEGA coil PE Pipe Drum with McElroy Linetamer	PT10023 2 Inch Decoiling Trailer Only PT10024 2 Inch Decoiling Trailer C/W McElroy Line Tamer, Stowable Swing Arm	PT10025 McElroy Swing Arm Mount Assembly PT10026 Centre Pin Pipe coil support posts PT10027 External post pipe supports PT10028 Mudguard replacement-left/right PT10029 Electrical Harness & Lighting Kit	Heavy Duty Rugged Construction Suitable for all site applications Industrial Galvanized Finish For durability 500kg SWL, 2000kg ATM The capacity exceeds the weight of most standard PE pipe coils Rotator Fiction Brake Help avoid pipe ‘spring - back’ when decoiling Spare Wheel & Accessories Toolbox Supplied as Standard Available as a standard rotator Suitable for up to 75mm OD Pipe Diameters
10	Pipe Coil Tool Accesories - 32mm to 180mm Towing Head Range	PT10023 2 Inch Decoiling Trailer Only PT10024 2 Inch Decoiling Trailer C/W McElroy Line Tamer, Stowable Swing Arm	PT10025 McElroy Swing Arm Mount Assembly PT10026 Centre Pin Pipe coil support posts PT10027 External post pipe supports PT10028 Mudguard replacement-left/right PT10029 Electrical Harness & Lighting Kit	Heavy Duty Rugged Construction Suitable for all site applications Industrial Galvanized Finish For durability 500kg SWL, 2000kg ATM The capacity exceeds the weight of most standard PE pipe coils Rotator Fiction Brake Help avoid pipe ‘spring - back’ when decoiling Spare Wheel & Accessories Toolbox Supplied as Standard Available as a standard rotator Suitable for up to 75mm OD Pipe Diameters
