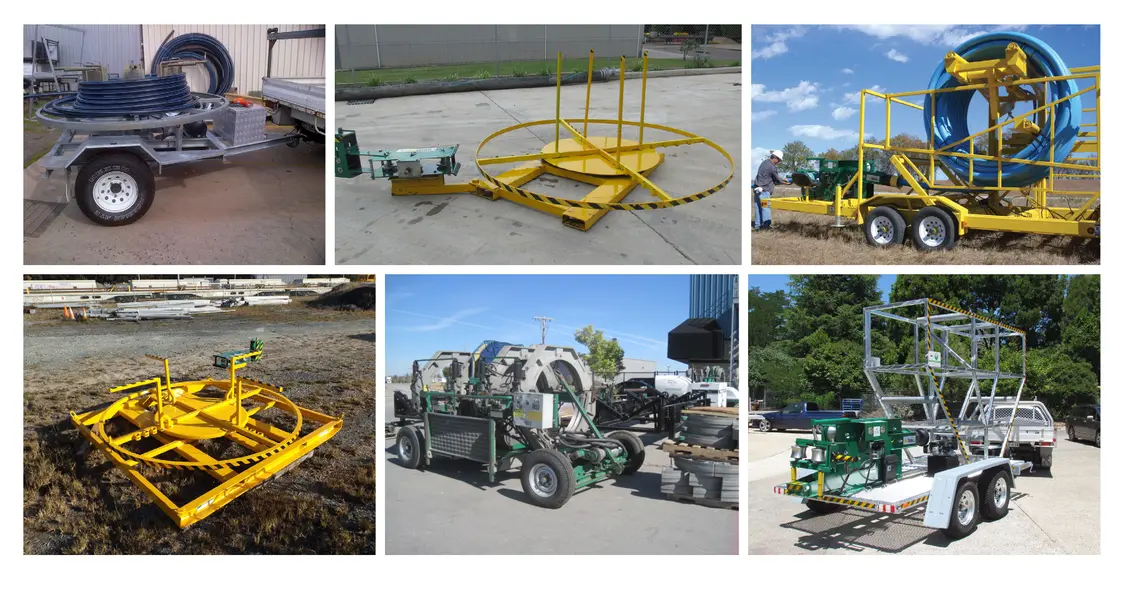

Decoiling Trailers

Complete Piping provides a comprehensive range of Decoiling Trailers designed for the safe and efficient transport, handling, and deployment of coiled polyethylene (PE) pipe on-site. These purpose-built trailers combine robust construction with user-friendly operation, ensuring smooth and controlled pipe decoiling in even the most demanding field conditions. Ideal for utilities, civil works, irrigation, and industrial projects, our decoiling trailers improve productivity while reducing manual handling and installation time.

Key Features:

Pipe Capacity: Suitable for PE pipe diameters ranging from 25mm to 125mm, depending on configuration
Heavy-Duty Chassis: Built with rugged structural steel for durability and stability during operation and transport
Rotating Turntable Deck: Enables controlled pipe uncoiling and smooth directional feeding into the trench or installation path
Friction Brake System: Ensures precise tension control to prevent pipe backspin or overrun
Integrated Spool Restraints: Secure pipe coils safely during transport and setup
Ease of Transport: Fully road-towable design with compliant lighting, braking, and hitch systems
Optional LineTamer Integration: Compatible with the McElroy 2″ LineTamer when ordered with custom fittings
Warranty and Service: Supplied with a 1-year full warranty, with extensions available; all parts are locally stocked for fast service and support

Applications:
Decoiling Trailers are ideal for utility installation, rural water supply, irrigation projects, cable conduit deployment, and gas and fluid distribution networks. They allow pipe coils to be handled efficiently and deployed directly from the trailer, reducing downtime and labor requirements.

Operational Benefits:

Enables rapid pipe installation with minimal manual effort
Reduces pipe handling damage and improves on-site safety
Provides mobility and flexibility, making it easy to operate across multiple job sites
Designed for stable performance in rugged terrain and variable site conditions

Complete Piping Systems’ Decoiling Trailers deliver a practical, durable, and efficient solution for professionals who demand reliable pipe management and streamlined field operations across large-scale projects.

Decoiling Trailers Products List

S.No	Product Name	Model Variations	Accessories & Replacement Parts	Specifications

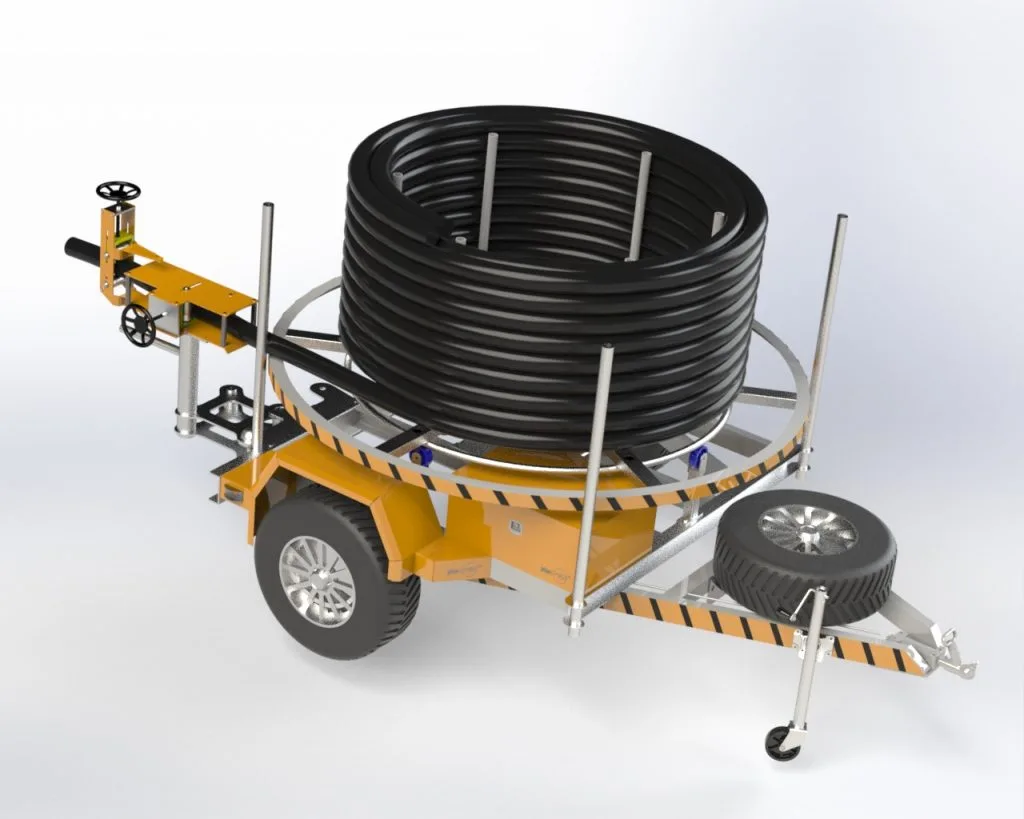

1	Pipe MAX 1500 2 Inch PE Pipe Decoiling Trailer	PT1523 2 Inch Decoiling Trailer Only PT1524 2 Inch Decoiling Trailer C/W McElroy Line Tamer, Stowable Swing Arm	PT1525 McElroy Swing Arm Mount Assembly PT1526 Centre Pin Pipe coil support posts PT1527 External post pipe supports PT1528 Mudguard replacement-left/right PT1529 Electrical Harness & LightingReplacementKit	Heavy Duty Rugged Construction Suitable for all site application Industrial Galvanized Finish For durability 500kg SWL, 2000kg ATM Capacity exceed the weight of most standard PE pipe coils Rotator Fiction Brake Help avoid pipe ‘spring - back’ when decoiling Spare Wheel & Accessories Toolbox Supplied as Standard Available as standard rotator or combination of rotator and McElroy Linetamer combination Suitable for up to 75mm OD Pipe Diameters

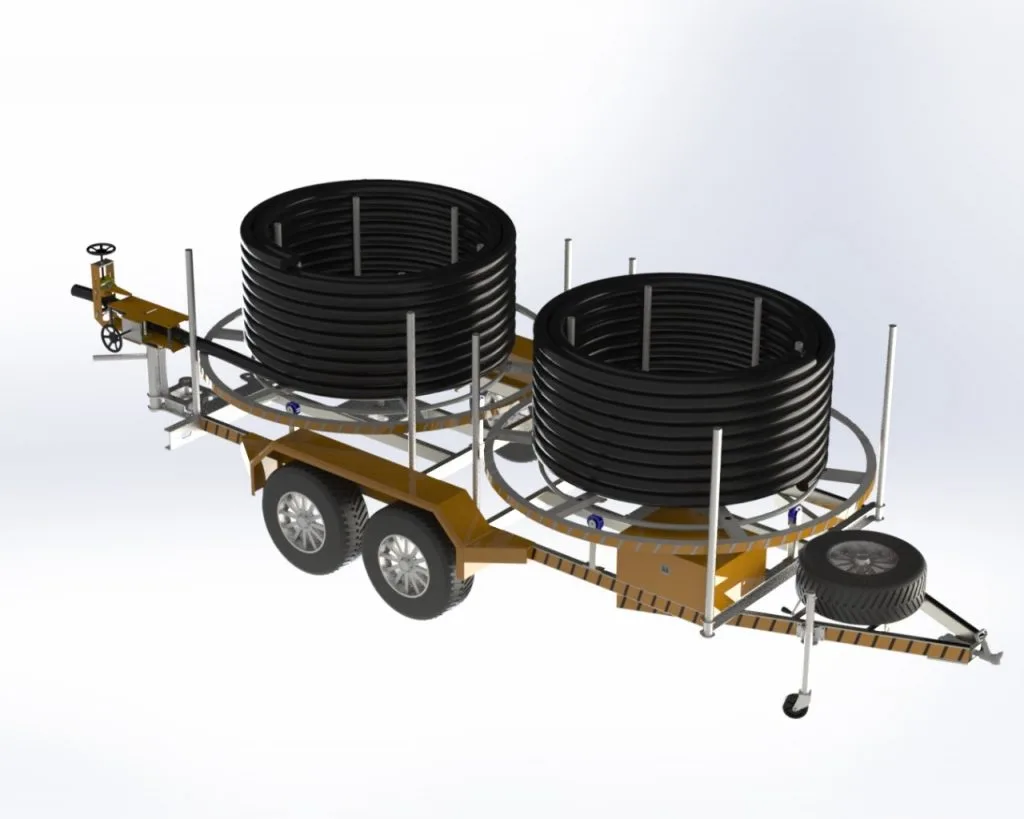

2	PipeMAX 2000 2 Inch Trailer Mount Decoiler	PT2023 2 Inch Decoiling Trailer Only PT2024 2 Inch Decoiling Trailer C/W McElroy Line Tamer, Stowable Swing Arm	PT2025 McElroy Swing Arm Mount Assembly PT2026 Centre Pin Pipe coil support posts PT2027 External post pipe supports PT2028 Mudguard replacement-left/right PT2029 Electrical Harness & Lighting Kit	Heavy Duty Rugged Construction Suitable for all site application Industrial Galvanized Finish For durability 2 x 500kg SWL, 2500kg ATM Capacity exceed the weight of most standard PE pipe coils Rotator Fiction Brake Help avoid pipe ‘spring-back’ when decoiling Spare Wheel & Accessories Toolbox Supplied as Standard Available as standard rotator or combination of rotator and McElroy Linetamer combination Suitable for up to 75mm OD Pipe Diameters
3	Pipe MAX 3200 6 Inch PE Pipe Decoiling Trailer	PT3223 pipeMAX 6 Inch PE Pipe Decoiling Trailer, 650kg SWL PT3224 pipeMAX 6 Inch PE Pipe Decoiling Trailer, 1200kg SWL	PT3225 Main Internal Roller Replacement PT3226 Exit Roller Replacement-Horizontal PT3227 Exit Roller Replacement-Vertical PT3228 Door Replacement Latches PT3229 Door & Side Panels (please specifyrequirements) PT3230 Mudguard replacement–left & right PT3231 Electrical Harness & Lighting Kit PT3232 Mudguard replacement-left/right PT3233 Electrical Harness & Lighting Kit	Heavy Duty Rugged Construction Suitable for all site application Industrial Galvanized Finish For durability 650 kg or optional 1200kg SWL, 1800 kg ATM or optional 2200kg ATM Capacity exceed the weight of most standard PE pipe coils Forklift Tyne Pockets & Chainable Adjustable Exit Roller System Accessories Toolbox Supplied as Standard Available as standard rotator Suitable for up to 180mm OD Pipe Diameters
4	Pipe MAX 3600 6 Inch PE Pipe Decoiling Trailer	PT3623 pipeMAX 6 Inch PE Pipe Decoiling Trailer,1200kg SWL	PT3225 Main Internal Roller Replacement PT3226 Exit Roller Replacement-Horizontal PT3227 Exit Roller Replacement-Vertical PT3228 Door Replacement Latches PT3229 Door & Side Panels (please specifyrequirements) PT3230 Mudguard replacement–left & right PT3231 Electrical Harness & Lighting Kit PT3232 Mudguard replacement-left/right PT3233 Electrical Harness & Lighting Kit	Heavy Duty Rugged Construction Suitable for all site application 1200kg SWL, 2 5 00kg ATM Capacity exceed the weight of most standard PE pipe coils Forklift Tyne Pockets & Chainable Adjustable Exit Roller System Accessories Toolbox Supplied as Standard Available as standard rotator Suitable for up to 180mm OD Pipe Diameters
5	PipeMAX 3800 6 inch PE Pipe Decoiling Trailer	PT3823 pipeMAX 6 Inch PE Pipe Decoiling Trailer C/W McElroy Line Tamer, 650kg SWL, 2000kg ATM PT3824 pipeMAX 6 Inch PE Pipe Decoiling Trailer C/W McElroy Line Tamer, 1200kg SWL,3200kg ATM	PT3825 Main Internal Roller Replacement PT3826 Exit Roller Replacement-Horizontal PT3827 Exit Roller Replacement-Vertical PT3828 Door Replacement Latches PT3829 Door & Side Panels (please specifyrequirements)	Heavy Duty Rugged Construction Suitable for all site applications Industrial Galvanized Finish For durability 500 kg or optional 1200kg SWL, 2000kg ATM or optional 3200kg ATM The capacity exceeds the weight of most standard PE pipe coils Adjustable Exit Roller System Accessories Toolbox Supplied as Standard Overall dimensions 6.5mL x 2.5mW x 3.2 mH NSW Road registerable
